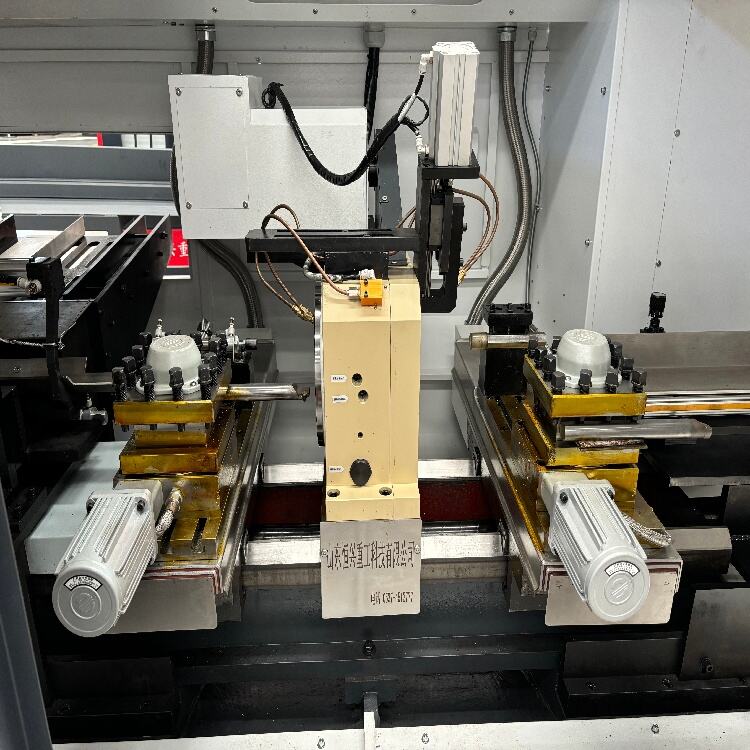

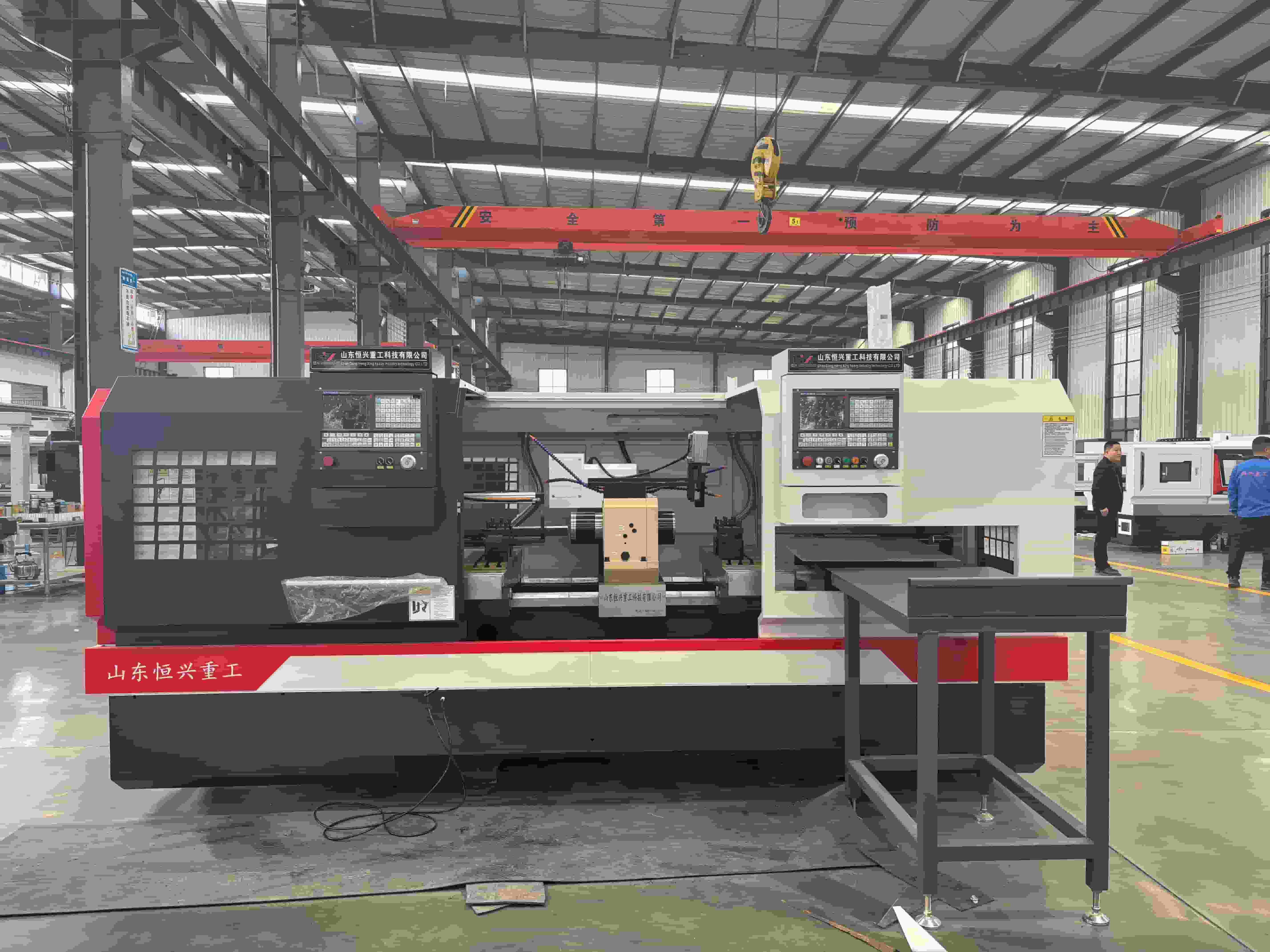

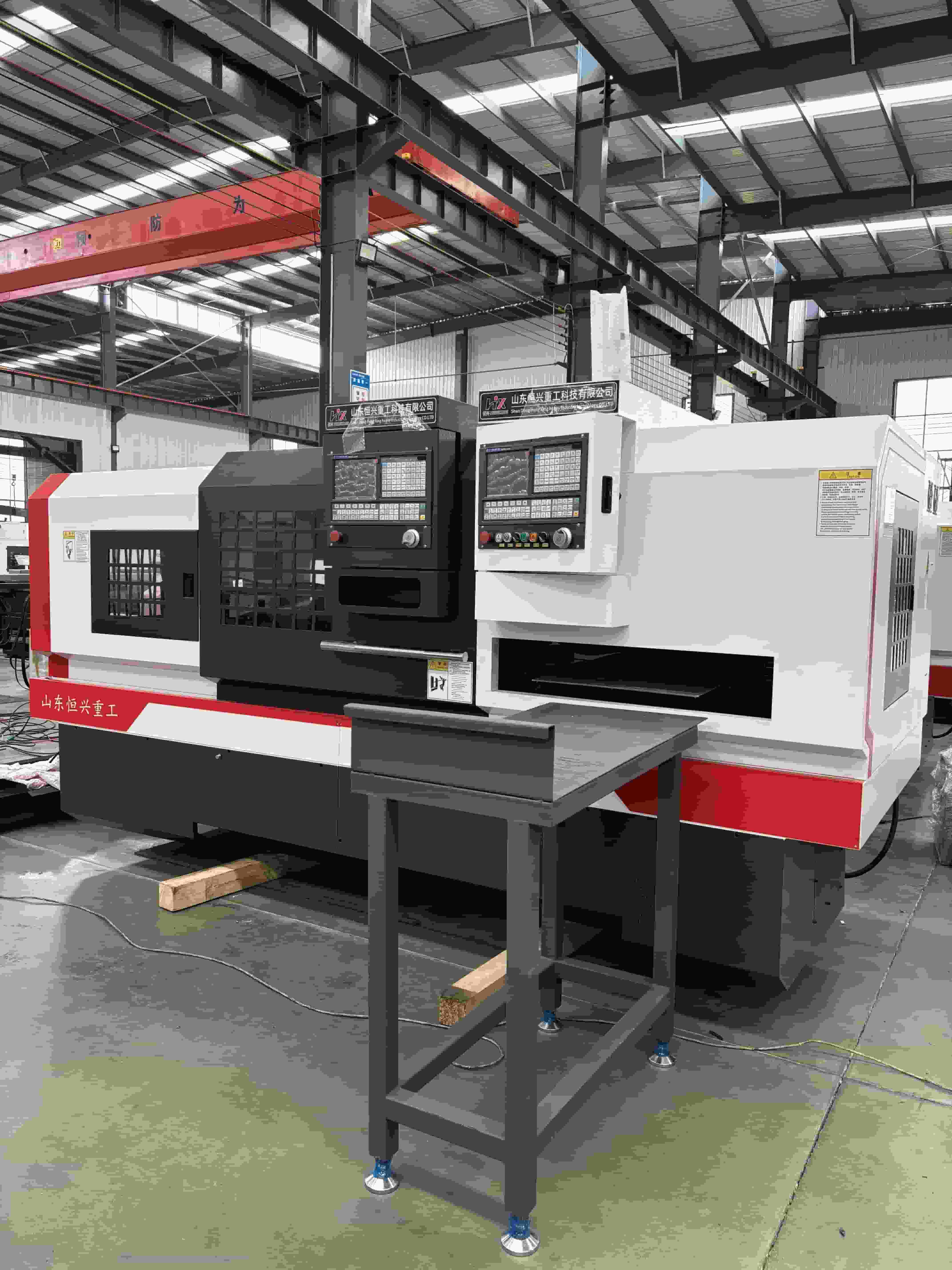

This is a horizontal CNC machining equipment with a flat bed and floor-mounted installation, equipped with a 5.5kw main motor. Its core system supports customizable configuration, and dual-system solutions such as GSK 980TB3i can be selected according to requirements. The equipment adopts an integrally cast bed structure, featuring a double-spindle and double-tool turret design (the tool turret can be customized on demand), and supports 4-axis linkage machining, enabling stable high-precision operations.
This is an horizontal CNC machining equipment with a flat bed and floor-mounted installation, equipped with a 5.5kw main motor. Its core system supports customizable configuration, and dual-system solutions such as GSK 980TB3i can be selected according to requirements. The equipment adopts an integrally cast bed structure, featuring a double-spindle and double-tool turret design (the tool turret can be customized on demand), and supports 4-axis linkage machining, enabling stable high-precision operations.
In terms of processing range, the equipment focuses on full customizable adaptation: the processing diameter can flexibly cover the range of 20mm - 72mm, and the processing length can meet the demand of 150mm - 300mm.
This equipment can complete a variety of processing procedures in one stop, including external cylindrical turning, internal thread turning, drilling, and chamfering. It adopts a processing structure of "workpiece rotating while tools stationary", and the processing accuracy stably reaches IT6 - IT7 grade. In addition to the core tool turret and system, the entire equipment supports full-dimensional non-standard customization. Key components such as tool changers, pneumatic spindles or hydraulic spindles can be flexibly selected according to the specific specifications of workpieces and process requirements, fully adapting to diverse production needs.
1.Mining Machinery Field: It is mainly used for processing mining machinery idlers, mining geological casing drill pipes, chain shafts, and other components, meeting the strict requirements of mining machinery for component strength and precision.
2.Automotive and Transportation Field: It can process key automotive components such as drive shafts, piston rods, and brake discs, and also be used for precision processing of connecting pipes for hydraulic elevators, ensuring the assembly precision and reliability of automotive components.
3.General Machinery and Sports Equipment Field: It is applicable to the processing of treadmill rollers, conveyor rollers, etc., and can also meet the processing needs such as boring and flat chamfering of various pin shafts and casings.
4.High-End Manufacturing Field: In the aerospace field, it can process precision components related to engines; in the medical device field, it can complete the processing of complex shapes of small precision parts, conforming to the high precision standards of high-end manufacturing industry.
The equipment achieves multiple breakthroughs targeting the pain points of traditional machine tools, with significant core advantages:
1.Doubled Efficiency: Relying on the central-driven spindle dual-end synchronous drive technology, it can complete the processing of both ends of the workpiece with one clamping. Compared with traditional single-spindle lathes, the processing efficiency is increased by 200%, greatly shortening the production cycle.
2.Reliable Precision: The unique way of clamping the middle of the workpiece, combined with the upgraded design of the hydraulic spindle, solves the problem of concentricity error in traditional processing. Meanwhile, the non-standard customization mode can accurately match processing needs, ensuring the consistency of mass production.

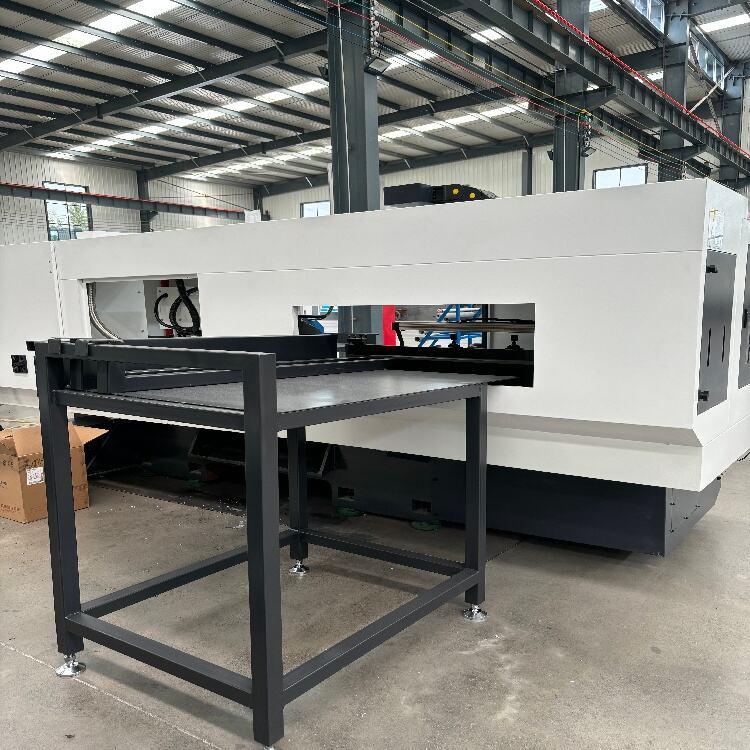

3.Significant Cost Reduction: The fully automatic loading and unloading design allows one person to operate 8 - 10 sets of equipment, greatly reducing labor input and alleviating the problem of difficult recruitment for enterprises. In addition, one piece of equipment integrates multiple processing processes, reducing equipment procurement and replacement costs, and saving workshop floor space.
| Model: | HX-1530-72 |
| Structure: | Flat bed |
| Type: | Horizontal |
| Diameter Range: | 20-72mm |
| Length Range: | 150-300mm |
| Accuracy: | ±0.01mm(Related to product materials and roughness） |
| No.of Spindles: | 1 |
| Max.Spindle Speed(r.p.m): | 2000r.p.m |
| Spindle Motor Power: | 5.5kw |
| Spindle Clamping Method: | hydraulic |
| CNC System: | GSK/KND/FANUC |
| Max.Strock of X axis: | 400mm |
| Max.Strock of Z axis: | 400mm |
| Dimensions: | 3650*1700*1800mm |
| Weight: | 2700kg |
| Warranty Period: | 1 Year |
| Certifications: | ISO/ CE |
1. What are the core advantages of your Dual-Head CNC Lathe?
Our Dual-Head CNC Lathe is engineered with twin-spindle simultaneous machining and truss-type auto loading/unloading system, delivering 50-80% higher production efficiency compared to single-spindle machines. It ensures ±0.01mm precision and 24/7 unmanned operation, slashing labor costs while maximizing output.
2. What materials can the machine process?
Our Dual-Head CNC Lathe handles a wide range of materials, including carbon steel, alloy steel, stainless steel, aluminum, copper, and engineering plastics. It is optimized for both bar stock and chuck workpieces , making it ideal for automotive, aerospace, and general engineering applications.
3. What after-sales support do you provide?
We offer 24/7 technical support via phone and email. All machines come with a 12-month warranty on parts and labor, plus free software updates for life.
4. How can I contact you?
Phone: +86 185 5378 6008
Email： [email protected]
Our team is ready to answer your questions, provide customized quotes, or arrange a live demo of our Dual-Head CNC Lathe.
